Cutler hammer model ED3125LA06S02

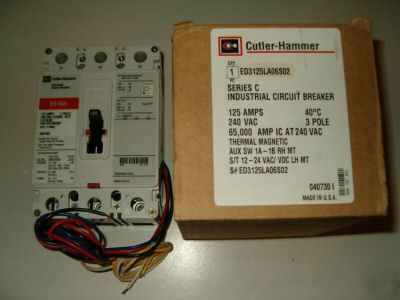

What is for sale: Cutler hammer model ED3125LA06S02
Cutler Hammer ED3125LA06S02 Specifications:
MOLDED CASE, THERMAL MAGNETIC; F FRAME; 240 VAC AT 50/60 HZ, 125 VDC; 125 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC, 10 KILOAMPERE AT 125 VDC (UL); 65 KILOAMPERE AT 220/240 VAC, 10 KILOAMPERE AT 125 VDC (IEC); TERMINAL STANDARD PRESSURE LINE TERMINAL, STANDARD PRESSURE LOAD TERMINAL; SIZE 4.125 INCH W X 3.375 INCH D X 6 INCH H; APPROVAL UL; ED MODEL; APPLICABLE STANDARD IEC 157-1; INCLUDES RIGHT/NEUTRAL POLE MOUNTED 1NO-1NC CONTACT AUXILIARY SWITCH WITH PIGTAIL LEAD ON REAR SIDE, LEFT POLE MOUNTED 12 TO 24 V SHUNT TRIP WITH PIGTAIL LEAD ON REAR SIDE
